MCB

Product List

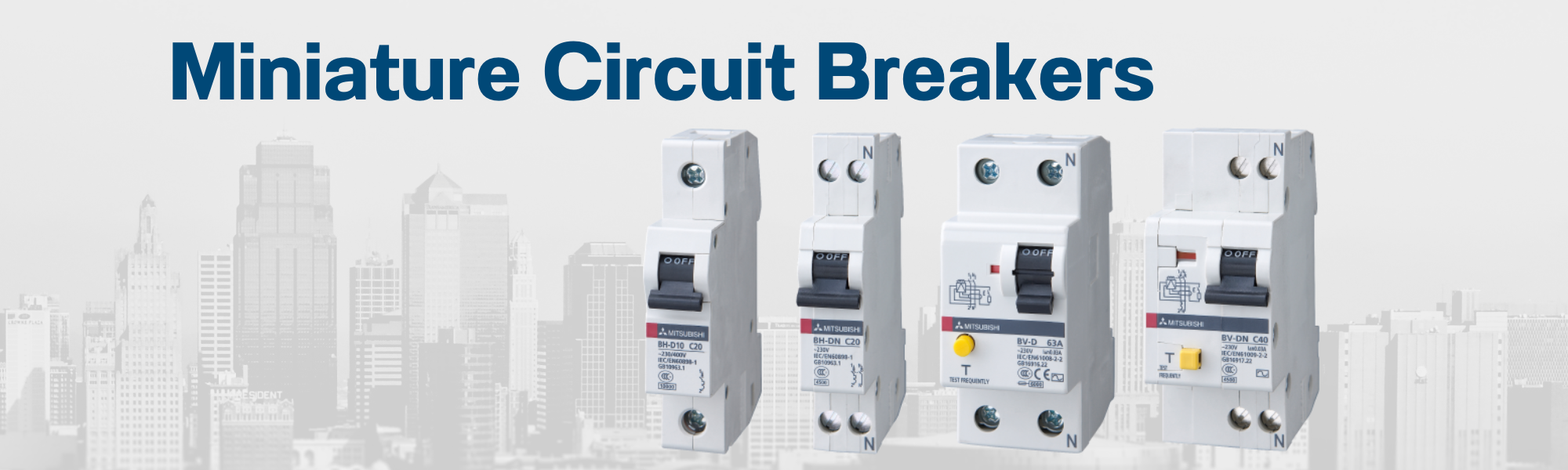

Miniature Circuit Breakers (MCB) BH-D, BH-DN

Standard: IEC60898-1
Breaking capacity: 4.5kA to 10kA 230/400VAC, 10kA 250VDC.

Residual Current Circuit Breakers (RCCB) BV-D

Standard: IEC61008
Type of residual current: Type AC

Residual Current Circuit Breakers with Overload Protection (RCBO) BV-DN

Standard: IEC61009
Breaking capacity: 4.5kA 230VAC Type of residual current: Type AC

Isolation Switches KB-D

Standard: IEC60947-3

MCB is a small circuit breaker manufactured based on IEC, mainly used for protection of small capacity branch circuits.     Can be easily mounted on 35mm IEC rail, we are preparing the following breaker-switch.

   ✅ MCB : Miniature Circuit Breakers

   ✅ RCCB : Residual Current Circuit Breakers

   ✅ RCBO : Residual Current Circuit Breakers with Overload protection

   ✅ Isolating Switch

Product Line-up

Model No. of poles
(P)		 Rating Instantaneous
tripping		 Voltage
(V)		 Breaking capacity
(kA)		 Standard
MCB BH-D6 1, 2, 3, 4 (3+N) 0.5～63A TYPE B, C, D 230/400AC 6 IEC60898-1
1+N 0.5～40A TYPE B, C 230AC
BH-D10 1, 2, 3, 4 (3+N) 0.5～63A TYPE B, C, D 230/400AC 10 IEC60898-1
BH-D10
(for DC)		 1 0.5～63A TYPE B, C 125DC 10 IEC60898-2
2 250DC
BH-DN 1+N 6～20A TYPE C 230AC 4.5 IEC60898-1
RCCB BV-D 2(1+N), 4(3+N) 25, 40, 63A – 230/400AC – IEC61008
RCBO BV-DN 1+N 6～40A TYPE C 230AC 4.5 IEC61009
Isolating
Switch		 KB-D 1, 2, 3, 4 (3+N) 32, 63, 80A – 230/400AC – IEC60947-3
